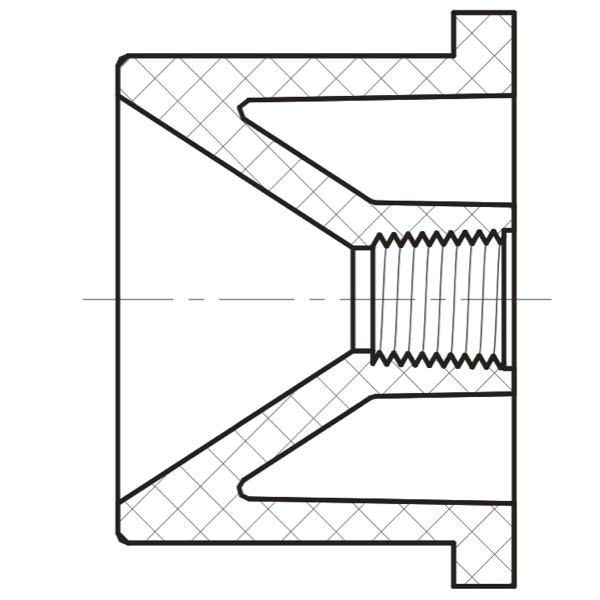

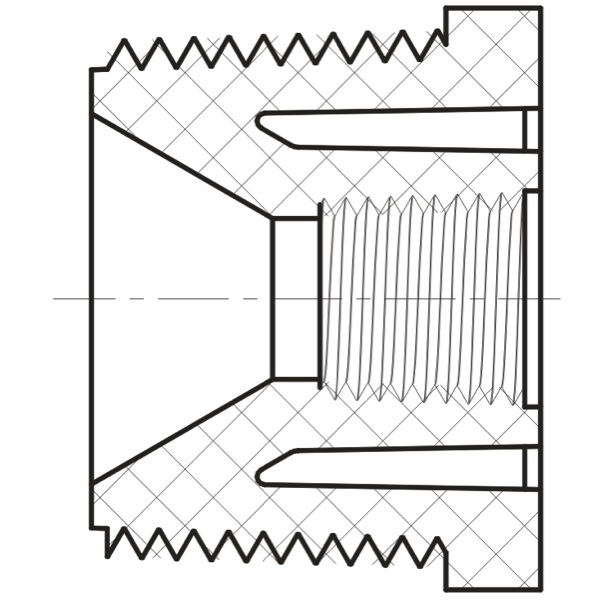

Reducing T.T. Bushing Flush Style (MIPT × FIPT)
Reducing T.T. Bushing Flush Style (MIPT × FIPT)
Part Number Size(in) Std Pk Mstr Ctn
439-052 3/8×1/4" 50 600
439-072 1/2×1/4" 150 1800
439-073 1/2×3/8" 50 600
439-098 3/4×1/4" 50 600
439-099 3/4×3/8" 50 600
439-101 3/4×1/2" 50 600
439-128 1×1/4" 25 300
439-130 1×1/2" 50 600
439-131 1×3/4" 50 600
439-166 1-1/4×1/2" 25 300
439-167 1-1/4×3/4" 25 300
439-168 1-1/4×1" 25 300
439-198 1-1/2×2" 40 240
439-209 1-1/2×1/2" 25 200
439-210 1-1/2×3/4" 25 200
439-211 1-1/2×1" 25 200
439-212 1-1/2×1-1/4" 25 200
439-248 2×3/4" 10 120
439-249 2×1" 10 120
439-250 2×1-1/4" 10 120
439-251 2×1-1/2" 10 120
439-292 2-1/2×2" 10 60
439-338 3×2" 10 60
439-422 4×3" 6 24

* Only cNSF is available

REFERENTIAL STANDARDS

NSF/ANSI 61 Drinking Water System Components - Health Effects

NSF/ANSI 14 Plastics Piping System Components and RelatedMaterials

ASTM D 1784 Standard Specification for Rigid Poly(Vinyl Chloride)(PVC) Compounds and Chlorinated Poly(Vinyl Chloride) (CPVC)

CompoundsASTM D 2466 Standard Specification for Poly(Vinyl Chloride) (PVC)Plastic Pipe Fittings, Schedule 40

CSA B137.3 Rigid Polyvinylchloride (PVC) Pipe and Fittings forPressure Applications

PVC SCH 40 Fittings
