Plumbing and pipe systems use PVC SCH 40 fittings for their pressure rating, corrosion resistance, and endurance. Tolerating intense internal loads, their thick walls suit pressurized and non-pressurized systems. Their types, uses, and benefits will be covered in this article. Let’s continue if you are interested.

What are PVC SCH 40 Fittings?

PVC SCH 40 pipe fittings match Schedule 40 thickness specs. ASTM D1784, D1785, and D2466 define wall thickness related to pipe diameter. The fittings handle moderate pressure applications around 450 psi at 73°F. Still, their pressure rating decreases as temperature increases. They are precision-molded to tolerances in plumbing, irrigation, and industrial systems. PVC SCH 40 fittings are chemically resistant and satisfy NSF 61 and ANSI/NSF Standard 14 for drinking water.

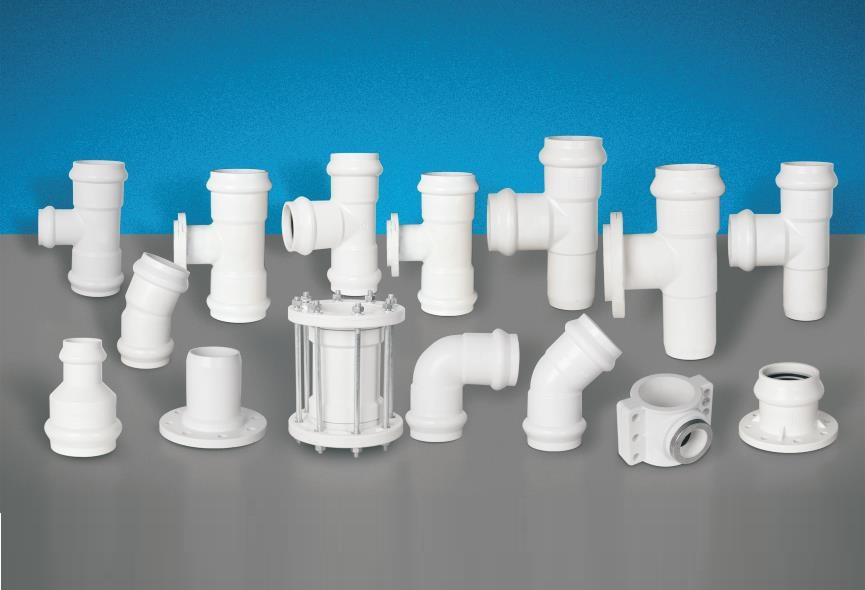

Types of PVC SCH 40 Fittings

Here are different types of SCH 40 PVC fittings:

Tee: A fitting that splits the flow into two branches at a 90-degree angle.

Ell:A 90-degree elbow fitting to change the direction of flow.

Side Outlet Ell: An elbow with an additional side outlet for branching.

Cross: A fitting that splits the flow into four directions for a plus shape.

Riser Extension: Extends a vertical pipe section above ground or floor level.

Wye: A fitting that merges or splits flow at a 45-degree angle.

Cap: A fitting utilized to seal off the end of a pipe.

Coupling: Joins two sections of pipe in a straight line.

Adapter: Transitions from PVC pipe to a different material or fitting type.

Bushing: Decreases the size of a pipe opening for a smaller diameter.

Plug: Closes off an opening in a fitting, commonly threaded.

Seal: Guarantees a watertight or airtight connection between pipe fittings.

Common Uses of PVC SCH 40 Fittings

Schedule 40 PVC pipe fittings are commonly used in different  fields, including the following:

Residential Uses

PVC SCH 40 fittings in residential plumbing are fundamental for cold water supply lines, DWV (drain, waste, and vent) systems, and irrigation. They handle moderate pressure for home water distribution. They might connect sinks and tubs to the main drainage in the venting systems. That’s where airflow helps maintain proper drainage pressure. Apart from that, they also offer high chemical resistance for waste systems where acidic or alkaline wastewater may flow.

Commercial Applications

In commercial environments, PVC SCH 40 fittings are critical in non-potable water systems, including fire suppression sprinkler systems. Their corrosion resistance is reliable for HVAC condensate drains because such systems might deal with temperature fluctuations and chemical exposure. Besides, in commercial aquaculture, the fittings are employed for water circulation and filtration systems thanks to their low maintenance and durability in capricious water conditions.

Industrial Uses

PVC SCH 40 fittings in industrial sectors transport corrosive fluids in mining and mineral processing. They also manage industrial waste to endure abrasive materials and chemicals. Plus, textiles facilitate the movement of wastewater laden with dyes and chemicals. The fittings offer strength and chemical stability for such aggressive environments over long periods.

Benefits of Using PVC SCH 40 Fittings

Using PVC SCH 40 fittings will benefit a lot. They provide:

Durability and Strength

PVC SCH 40 fittings have high resistance to physical wear and chemical corrosion. Over time, the fittings uphold structural integrity even when exposed to chemicals, salts, and aggressive fluids. Due to the thicker walls, their toughness guarantees stability under pressure up to 450 psi for water at 73°F, depending on pipe size. Unlike metal counterparts, PVC SCH 40 fittings do not degrade from rust or scale for better life in industrial and chemical applications with severe corrosion.

Ease of Installation

Installing PVC SCH 40 fittings is frank and requires basic tools and technical expertise. The solvent welding creates strong, leak-proof joints without radical welding techniques or equipment. Also, the lightweight nature of PVC cuts handling difficulties for faster assembly and lower labor time. Their compatibility with glue and mechanical joining methods renders PVC SCH 40 fittings ideal for retrofitting and new projects in residential, commercial, and industrial settings.

Environmental Impact

PVC SCH 40 fittings have a lower environmental footprint due to their recyclability and energy-efficient production. Further, many PVC SCH 40 products can be recycled into new piping systems for lower waste. The low thermal conductivity of PVC decreases heat loss in water systems, which conserves energy during operation. It adds to their sustainable advantage in long-term applications.

PVC SCH 40 Fittings from LESSO

At LESSO, we manufacture PVC SCH 40 pipe fittings following ASTM D1784 and D2466 standards for high performance in water distribution and pressure applications. Our product range includes but is not limited to PVC SCH 40 tees, Schedule 40 PVC adapters, couplings, and elbows for durability and leak-proof connections in plumbing and industrial systems. What is more, all our products are NSF/ANSI 61 and 14 certified. Undoubtedly, it mirrors their safety and compliance with potable water systems, along with chemical resistance and long-term dependability.

Conclusion

LESSO manufactures high-quality PVC and ABS fittings using cutting-edge injection molding technology. Our products meet or exceed NSF, ASTM, and CSA requirements for plumbing, irrigation, and wastewater management. Our distribution network provides coast-to-coast availability, and our certifications—cUPC and NSF 14—guarantee the greatest potable water system safety and life expectancy. Consult our technical catalog for complete product information.
